Mitel 6800 Series SIP Phones

The Mitel 6800 series is a family of powerful and modern SIP Phones offering advanced
interoperability with major IP telephony platforms. The Mitel 6800 series offers a range of phones
with a breadth of features, such as color graphical displays, GigE Ethernet ports and DHSG/
EHS headset support. All phones in the 6800 series have a sleek and modern industrial design,
remarkable HD wideband audio, an enhanced speakerphone, and superior audio processing to
achieve richer and clearer hands-free conversations. Additionally, all models feature a highly
compact desktop footprint and cutting-edge eco-friendly features, and support an extensive array
of accessories, including a wall mount kit, expansion modules, and detachable keyboards.

Mitel 6863 SIP Phone

This 2-Line SIP phone with its 2.75” graphical monochrome LCD display, programmable hard keys and smaller desktop
footprint is an ideal option for professional workers in business environments that have light telephone use requirements.
• 2.75” 128×48 pixel graphical display
• Up to 2 lines with dedicated line keys
• Wideband handset and speakerphone
• Dual 10/100 BaseT Ethernet ports with hardware based switch
• 3 programmable keys pre-programmed and labelled with Callers
List, Redial and Transfer
• Part number: 80C00005AAA-A

DataSheet

DataSheet

Mitel 6865 SIP Phone

The Mitel 6865 SIP Phone offers exceptional value in a fully featured, expandable IP phone. With its eight programmable keys, XML capabilities, Expansion Module and native DHSG/EHS support, the Mitel 6865 SIP phone is ideally suited for the small to large business market that needs Gigabit throughput for PC connectivity.
• 3.4” 128×48 pixel graphical backlit display
• Up to 9 lines with 2 dedicated line keys with LEDs
• Wideband handset and speakerphone
• Dual GigE Ethernet Ports
• DHSG/EHS headset and Expansion Module support
• 8 programmable keys with LEDs
• Part number: 80C00001AAA-A

Mitel 6867 SIP Phone

The Mitel 6867 SIP provides remarkable HD wideband audio and an enhanced speakerphone that utilizes advanced audio processing to achieve richer and clearer
conversations. The 6867 offers a large color LCD display,dual port GigE, six programmable soft keys, four contextsensitive system keys, native DHSG/EHS headset and Expansion Module support.
• Color 3.5” QVGA 320×240 pixel LCD display
• Up to 9 lines with 2 dedicated line keys with LEDs
• Magnetic Keyboard Interface
• Dual GigE Ethernet Ports
• DHSG/EHS headset and Expansion Module support
• 6 programmable soft keys with LEDs that can be customized to
access up to a total of 20 functions
• 4 context-sensitive system keys that can be customized to
access up to a total of 18 functions
• Part number: 80C00002AAA-A

DataSheet

DataSheet

Mitel 6869 SIP Phone

The Mitel 6869 SIP phone commands the desktop with its large 4.3” color display, powerful crystal clear HD audio and 12 programmable soft keys. Dual Gigabit Ethernet ports,magnetic keyboard interface, native DHSG/EHS headset support, and choice of expansion modules make the 6869 a powerful and expandable desktop communication device.
• Large color 4.3” 480×270 pixel LCD display
• Up to 12 lines with 2 dedicated line keys with LEDs
• Magnetic Keyboard Interface
• 2 GigE Ethernet Ports (LAN/PC)
• DHSG/EHS headset support-Expansion module support.
• 12 programmable soft keys with LEDs that can be customized to
access up to a total of 40 functions
• 5 context-sensitive system keys that can be customized to access
up to a total of 24 functions
• Part number: 80C00003AAA-A

Mitel 6873 SIP Phone

  • Position: Executive
  • 7” 800×480 pixel Color Capacitive Touchscreen
  • Keys
    – q48 softkeys over 4 pages
    – q30 context-sensitive softkeys, 6 pages
    – q2 Line hard keys with LEDs. Up to 24 SIP accounts supported
    – qKey-caps for Customizable Function Hard Keys
  • Embedded Bluetooth 4.0 Wireless
  • Enhanced WB Speakerphone
  • Headset Support : USB Headsets, Bluetooth Headset
  • Bluetooth Handset (Optional)
  • Extension Module Support

DataSheet

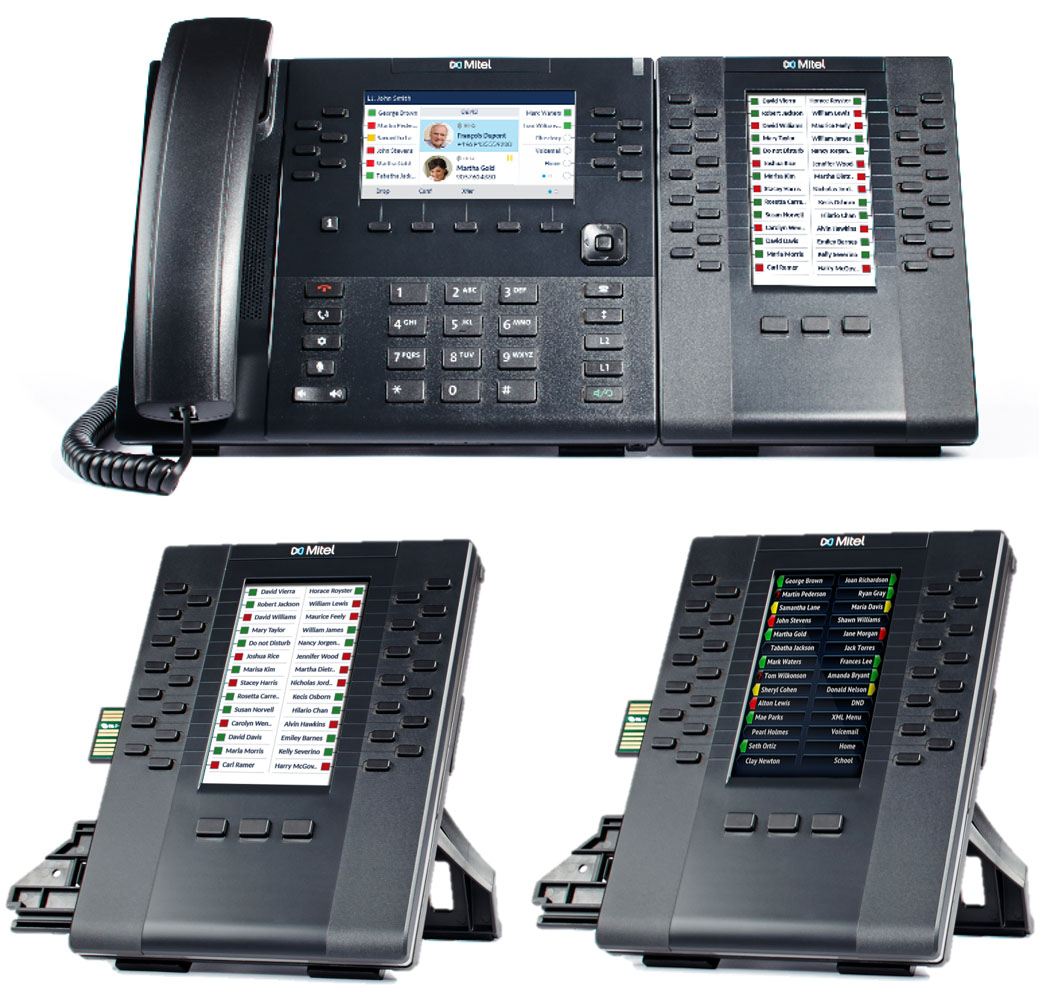

Mitel M685i Expansion Module

    • M685 LCD Extension Module supported on 6865, 6867 and 6869
    • Color Graphical display
    • 28 Hard keys with LED with 3 pages. 84 total programmable keys
    • Daisy chain up to 3 M685i modules for a total of 252 additional program keys
    • Powered from the Mitel phone (No separate power adapter required)
    • Intelligent PoE design
      – 6865 maintains PoE Class 2 with 3 M680 modules and changes to PoE Class 3 with any M685 connected
      – 6867 changes to PoE Class 3 when M680 or M685 connected
      – 6869 maintains PoE Class 3 when modules connected

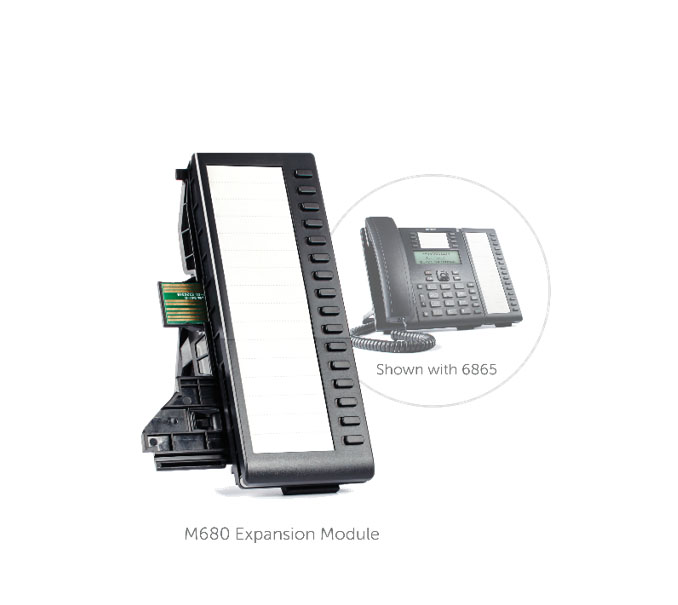

M680 Expansion Module

    • Provides 16 additional programmable keys with built-in LEDs
    • Supported on the 6865, 6867 and 6869
    • 16 programmable keys with LEDs
    • Paper insert labeling
    • Can be daisy chained with the M685 for a combined total of up to 3 modules
    • Powered by the phone—no separate power adapter required
